MV and LV Electrical Engineering Solutions



Earthing Services

• Provide Design and As Built Drawings

• Soil Resistivity Surveys

• Modelling and Design

• Earthing and Lightning Protection Installation

• Copper Brazing

• Exothermic Welding

• Cable and Tape Installation

• Contact Resistance Testing - all joints recorded

• Earth Fall of Potential Testing - up to 2000m.



Cabling Services

• Provide Design and As Built Drawings

• Cable Containment

• Cable Installation – up to 66kV

• Fibre Jointing

• HV and LV Jointing

• HV and LV Cable Fault Finding

• Cable Sheath Fault Finding

• Cable Spiking - explosive and nonexplosive



Cable Testing

• AC and DC Withstand Testing – Very Low Frequency (VLF)

• Insulation Resistance (IR)

• Polarisation Index (PI)

• Dielectric Absorption Ratio (DAR)

• Partial Discharge (PD), and Tan (TD) - diagnostics and analysing for cables up to 52Kv

• Online and Offline (PD) Mapping and Monitoring

• Buried Cable Location and Mapping

• Up to 52kV Cable Fault Pinpointing

• Sheath Fault Location

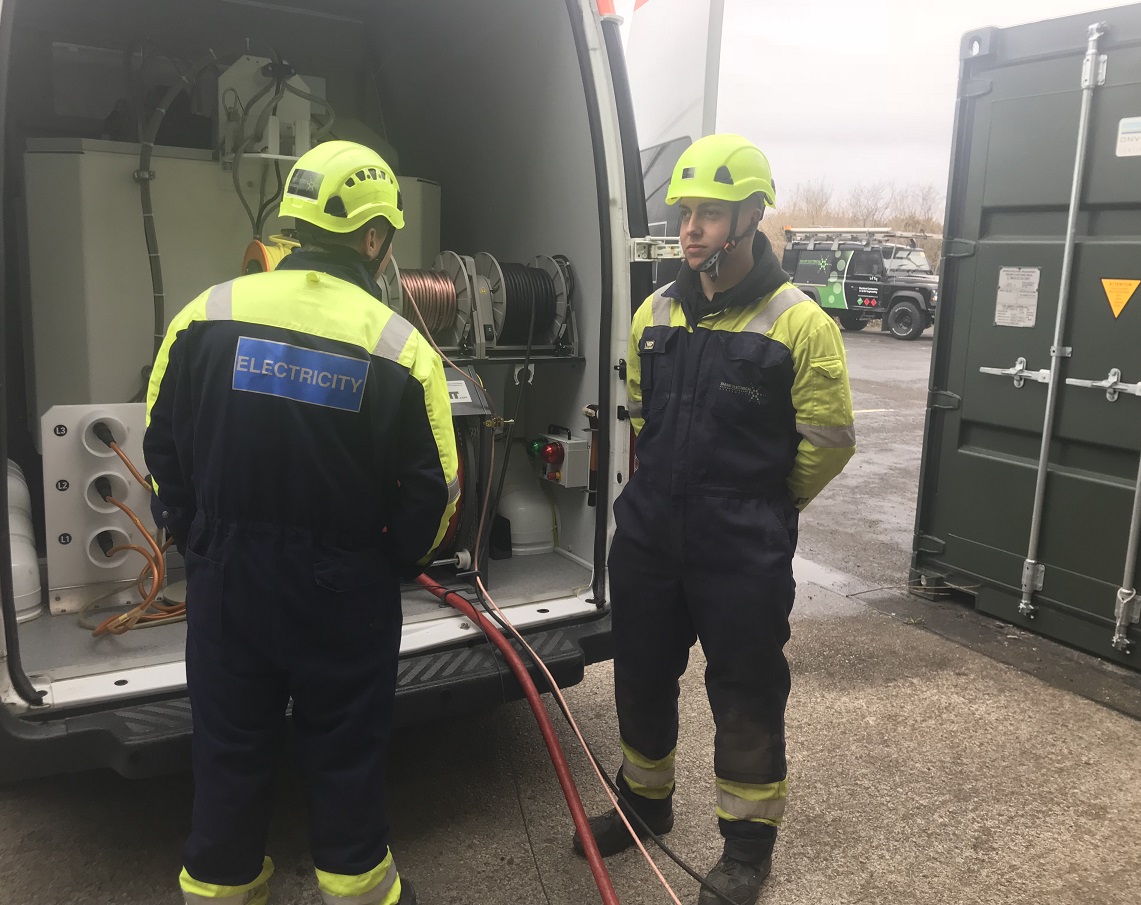

Cable Testing Fault Location Van

Cable Fault Testing

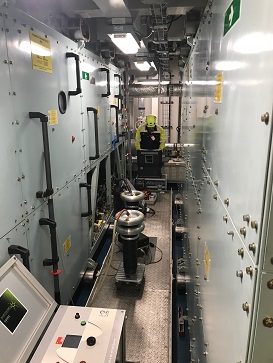

Partial Discharge TAN DELTA Test on a Vessel

 Partial Discharge Testing

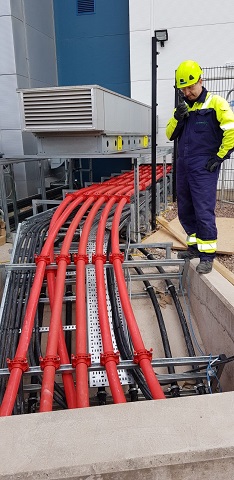

MV Cable Installation

Cable Installation

Our Accreditations
